FRP Reinforcing Fiber Mesh for Concrete

FRP Reinforcing Fiber Mesh for Concrete

FRP Reinforcing Fiber Mesh for Concrete is an alternative to steel grating used to reinforce concrete. It is made with high-grade continuous fibers (such as glass, carbon, and aramid fibers) that are integrally molded with a chemically resistant resin.

It is light, with greater tensile strength than an iron bar. It’s various properties, such as being corrosion resistant, and is currently patented in several countries in the world.

ネフマック

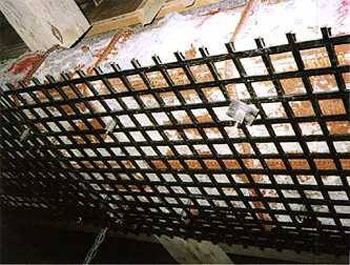

For Repairs and Reinforcement of Concrete

Characteristics

  • Light and strong
  • Highly corrosion-resistant
  • Does not rust
  • Can be used in non-magnetic structures

Used in:

Repairs and reinforcement of concrete parts found in bridges, tunnels, offshore structures, waste water treatment plants, etc.

コンクリート補修・補強用

For Shield Holes
Type Reinforcement
Fibers		 Resin Specific
Gravity		 Tensile Strength(MPa) Tensile Modulus(GPa)
G Glass Fiber Vinyl Ester 1.70 600 30
CR High Strength
Carbon Fiber		 Vinyl Ester 1.42 1400 100
CMR High Modulus
Carbon Fiber		 Vinyl Ester 1.42 1200 165
* These are standard values (not guaranteed).
** Grating intervals are 50mm, 100mm, and 150mm.

FRP Reinforcing Fiber Mesh for Concrete

Gauge number Nominal Cross Section Area (mm²) Standard Weight(g/m)
G3 8.7 15
G4 13.1 22
G6 35 60
G10 78.7 130
G13 131 220
G16 201 342
G19 297 510
CR3. CMR3 4.4 6.3
CR4. CMR4 6.6 9.5
CR6. CMR6 17.5 25
CR8. CMR8 26.4 38
CR10. CMR10 39.2 56
CR10. CMR10 65 92
CR16. CMR16 100 142
CR19. CMR19 148 210
CR22. CMR22 195 277
CR22. CMR22 260 369
CR29. CMR29 320 454
* These values are for reference only and are not guaranteed.
** The cross section is not uniform as open mold production is used.
*** Contact us for more information on parts not listed above.
Note: The numbers in the part identifications correspond to the diameter of the iron bar with the same tensile strength.

Comparison of Rigidity(Steel Bar and C-Type FRP Reinforcing Fiber Mesh for Concrete)

Gauge number FRP Reinforcing Fiber Mesh for Concrete
High-Strength Model Elasticity-Elasticity Model
Type Rigidity Part Rigidity Part Rigidity
D6 6.65 CR13 6.5 CRM10 6.5
D8 10.6 CR16 10 CRM13 6.5
D10 15 CR19 14.8 CRM19 16.5
* These are reference values (not guaranteed).
