Characteristics of GS type
Manufactured by crossing fiber while perfusing thermosetting resin to successive fiber.
Manufactured in standard size.
Relatively easy to cut and assembly at the work site.
GS Grating grid shape – square
| part number |
number |
specification |
color |
coating |
W |
H |
t |
lattice size |
weight |
aperture ratio |

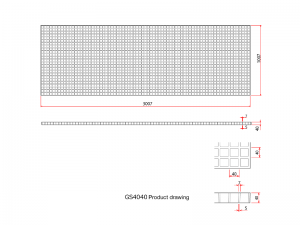

| GS4040 |
1 |
general type |
gray |
– |
1007 |
3007 |
40 |
40X40 |
18.5kg/m2 |
about 67% |
| 2 |
coating in specified color
(weather-resistant type) |
specified color |
|
| 3 |
*spun-dye specified color |
specified color |
– |
| 4 |
clear type
(weather-resistant type) |
colorless |
 |
|
|
|
– |
| 6 |
corrosion-resistant type |
beige |
– |
| GS4025 |
1 |
general type |
gray |
– |
25 |
11.7kg/m2 |
| 2 |
coating in specified color (weather-resistant type) |
specified color |
|
| 3 |
*spun-dye specified color |
specified color |
– |
| 4 |
clear type
(weather-resistant type) |
colorless |
|
| 5 |
*flame-resistant type |
gray |
– |
| 6 |
*corrosion-resistant type |
beige |
– |
| GS8040 |
1 |
general type |
gray |
– |
40 |
83.3X
83.3 |
9.4kg/m2 |
about 84% |
| 2 |
coating in specified color (weather-resistant type) |
specified color |
|
| 3 |
*spun-dye specified color |
specified color |
– |
| 4 |
clear type
(weather-resistant type) |
colorless |
|
| 5 |
*flame-resistant type |
gray |
– |
| 6 |
*corrosion-resistant type |
beige |
– |
Those with (*) mark are made to order and require minimum production lot.
*Coating is acrylic urethane, however, highly weather-resistant fluorine coating is available
(please contact us for quotation).
GS Grating grid shape – rectangle
| part number |
number |
specification |
color |
coating |
W |
H |
t |
lattice size |
weight |
aperture ratio |
GS2525
Standard
pattern |
1 |
general type |
gray |
– |
1,007 |
3,007 |
25 |
100X25 |
11.5kg/m2 |
about 68% |
| 2 |
coating in specified color
(weather-resistant type) |
specified color |
|
| 3 |
*spun-dye specified color |
specified color |
– |
| 4 |
clear type
(weather-resistant type) |
colorless |
|
| 5 |
flame-resistant type |
gray |
– |
| 6 |
corrosion-resistant type |
beige |
– |
GS2525
Longitudinal
pattern |
1 |
general type |
gray |
– |
| 2 |
coating in specified color
(weather-resistant type) |
specified color |
|
| 3 |
*spun-dye specified color |
specified color |
– |
| 4 |
clear type
(weather-resistant type) |
colorless |
|
| 5 |
*flame-resistant type |
gray |
– |
| 6 |
*corrosion-resistant type |
beige |
– |
Those with (*) mark are made to order and require minimum production lot.
* Coating is acrylic urethane, however, highly weather-resistant fluorine coating is available
(please contact us for quotation).
GS Grating – standard attachment bracket
GS Grating – details for reference
Pent roof having fall preventing function
Interior/Partition
Floor
|
