Characteristics and specification of Hikarikabe

Characteristics of Hikarikabe

Hikarikabe offers open and comfortable living space.

The material lets light and the air while maintaining quake resistance to realize bright and ample living space.

General bearing wall	Hikarikabe
Before	After

Excellent quake-resistance

It was the very first plastic material to be certified by Minister of Land, Infrastructure and Transport (certification No.: FRM-0138/wall ratio: 2.5).
Ultimate strength is 1.4 times more than plywood.

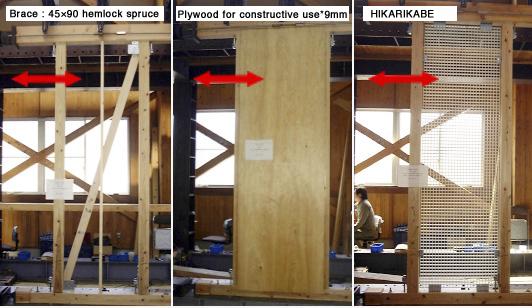

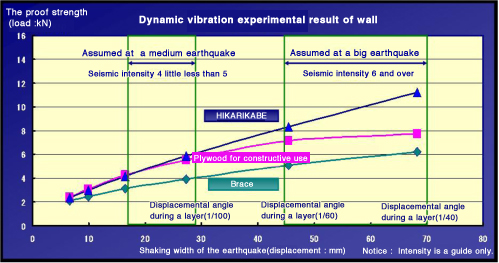

Comparison of wall dynamic vibration experiment
Brace/structural plywood/Hikarikabe

Experiment was performed by fixing the lower part and vibrating the upper part in the direction by arrow in the above pictures with interlayer displacement of 1/300 vibration 4Hz » 1/200,4Hz » 1/120,4Hz » 1/100,2Hz » 1/60,2Hz » 1/40,0.5Hz.
Resistance of plywood and brace gradually declines in a large amplitude while that of Hikarikabe remains high.

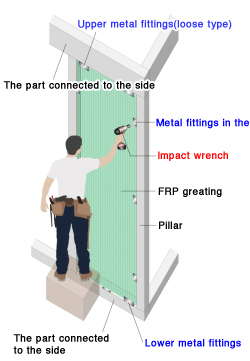

Speedy installation

Only impact wrench is required for installation of Hikarikabe. Directly fix dedicated L angled hardware to pillars and beams.

10mm and 17mm impact wrench sockets are also required (for coach screw and M10 bolt respectively).

Specification of Hikarikabe

Specification

Wall ratio: 2.5

Certification No.: FRM-0138

Construction method: conventional timber framework method only

Pitch: 910-1000mm (pillar size: over 105 x 105)

FRP lattice size (size within the certified size)

Maximum: 876ｗ　ｘ　2916ｈ　ｘ　30ｔ

Minimum: 726ｗ　ｘ　2256ｈ　ｘ　30ｔ

(Please refer to separate “How to calculate size of Hikarikabe”)

»●How to calculate size of Hikarikabe

* Size of Hikarikabe required differs dependent on installation locations. Please calculate the size of each piece to make an order.

Accessories

‘- Upper metal hardware – 2 pieces

‘- Lower metal hardware – 2 pieces

‘- Side metal hardware – 2 pieces

‘- Metal block – 30 pieces

‘- Bolt – 30 pieces / washer – 30 units

‘- Coach screw – 40 pieces

‘- Correction paint – 1 unit (use if necessary)

Installation specification

Installation locations of metal hardware are specified in accordance with the material certification.

Please check locations in the linked page below.

» ●Notes (installation location)

Reference price for design

Hikarikabe : 189,000 yen / piece (204,120 yen including tax)

*FRP, dedicated metal hardware, cutting process fee and transportation fee are included in the price above.

MOLYMER MATEX is a general FRP manufacturing company.
